意大利金乐GOLD NOTE探厂之高级手工音箱如何制作而成?

[复制链接]
发表于 2022-3-30 15:54:50 | 显示全部楼层 |阅读模式
一对优质的意大利手工音箱是如何制作而成的?

来看看意大利GOLD NOTE厂家的A6 EVO II落地箱制作过程,相信您会找到答案。

点击视频链接


HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131943.913.jpg

 楼主| 发表于 2022-3-30 15:57:33 | 显示全部楼层

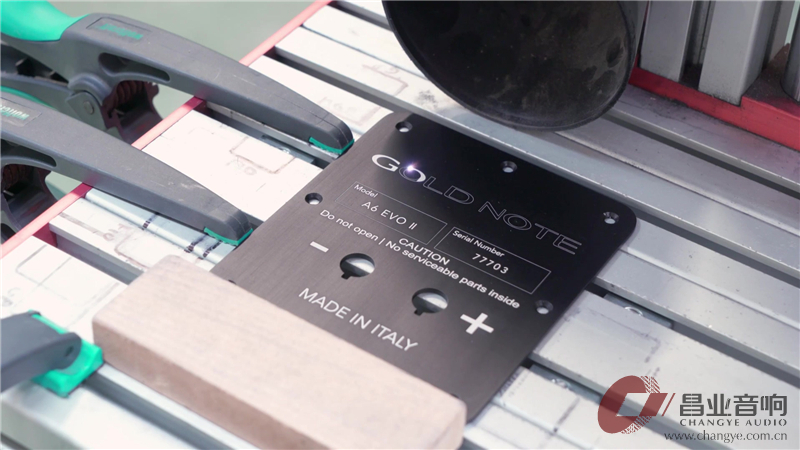

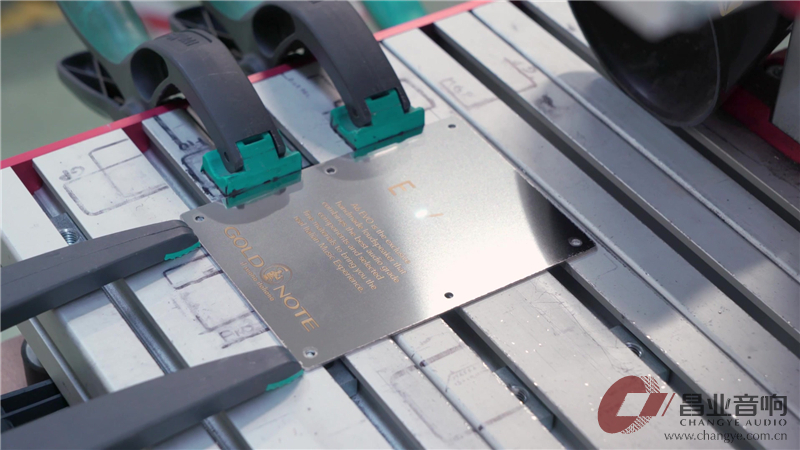

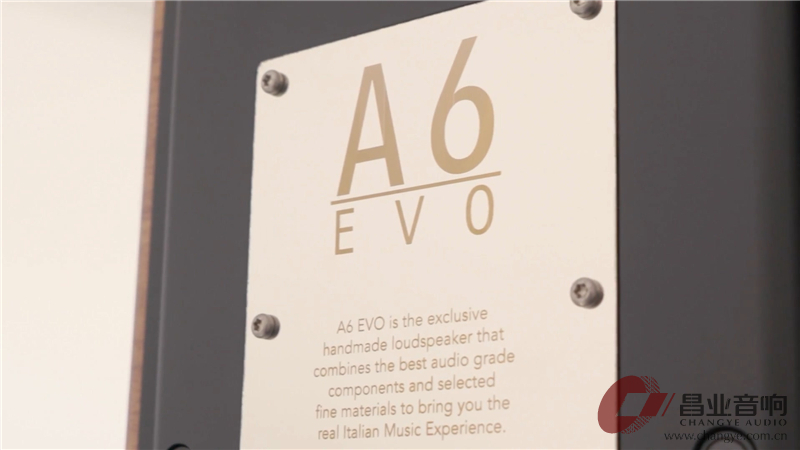

镭射打印A6 EVO II铭牌,打造精致的金属质感:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131852.861.jpg

面板的切割与打孔都是最高精度,方便接下来的端子和螺丝安装:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131902.963.jpg


 楼主| 发表于 2022-3-30 15:58:27 | 显示全部楼层

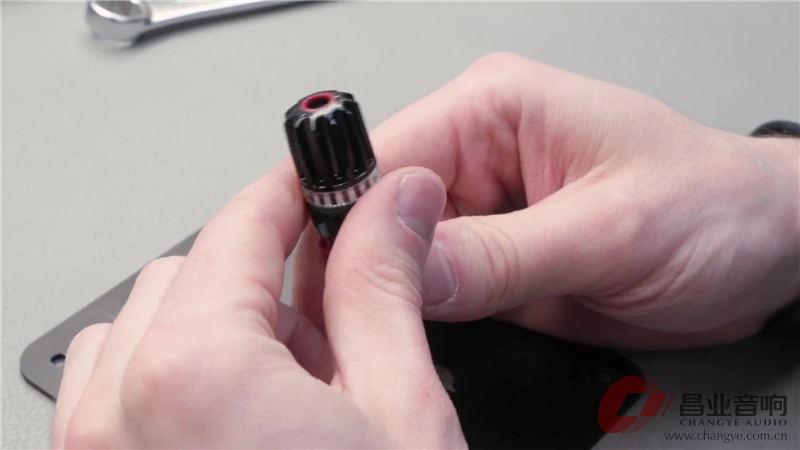

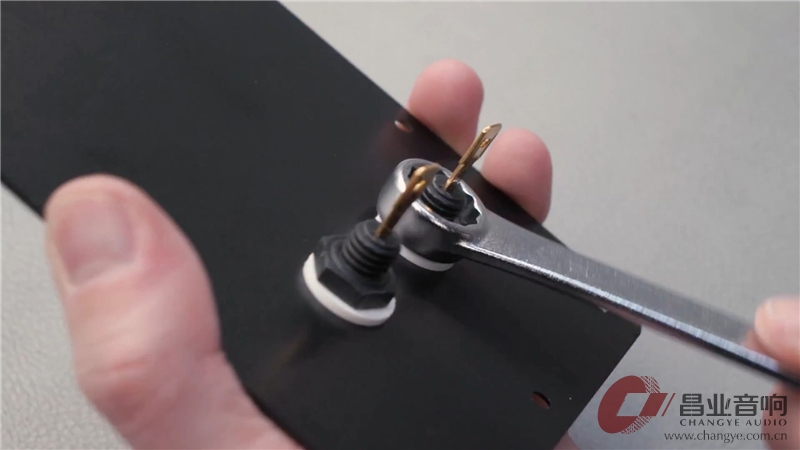

手工安装喇叭端子:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131916.216.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220329_124802.782.jpg
 楼主| 发表于 2022-3-30 16:00:39 | 显示全部楼层

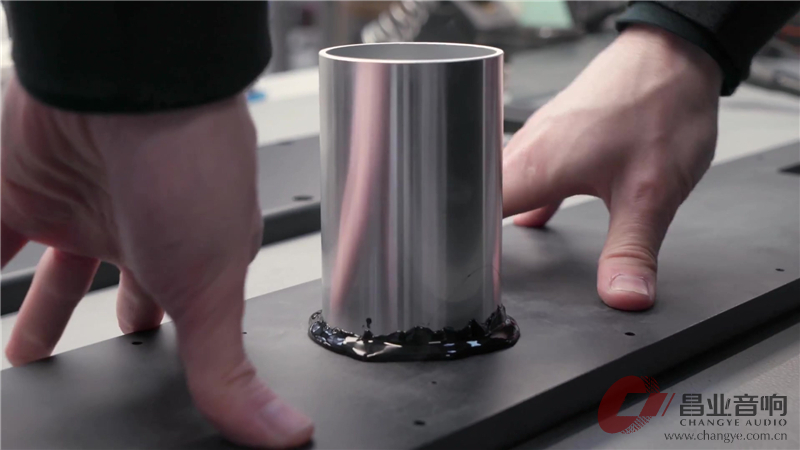

导向孔的固定与安装:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131934.678.jpg

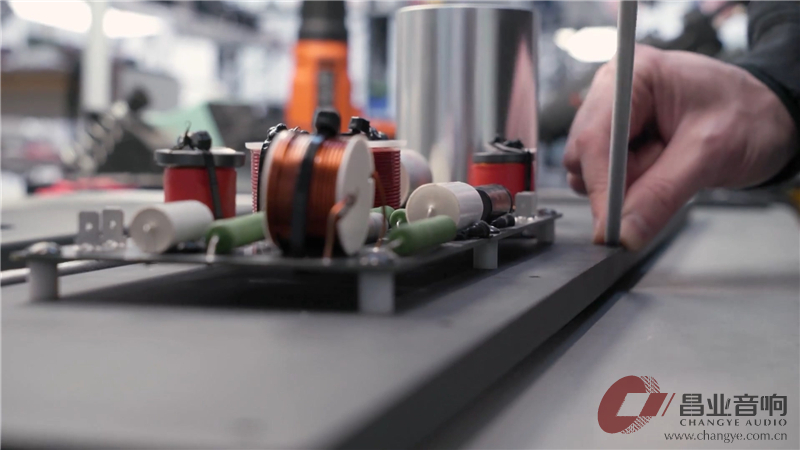

然后安装分频器,可以看到分频器的制作精良,一丝不苟:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131938.187.jpg

分频器组件由 Mundorf 和 Clarity独家定制,在设计方案上没有做出任何妥协,只选择最优质的组件。

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131943.913.jpg
 楼主| 发表于 2022-3-30 16:02:12 | 显示全部楼层

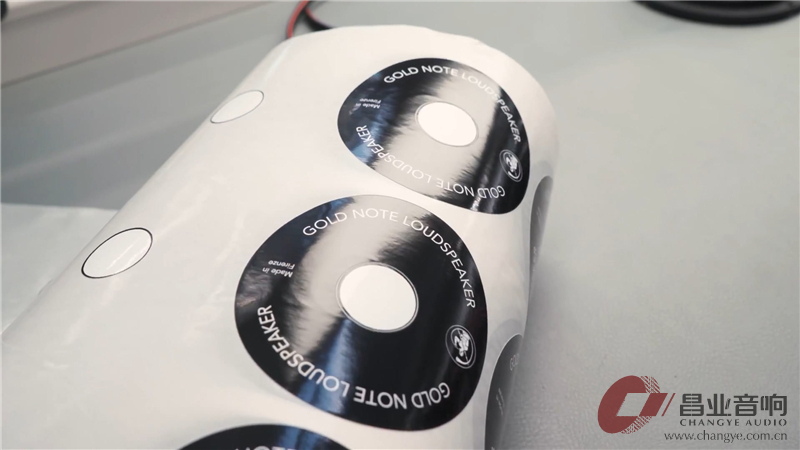

安装好面板与分频器后,接下来开始安装成品单元,首先贴上GOLD NOTE定制贴纸:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131953.611.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_131959.203.jpg

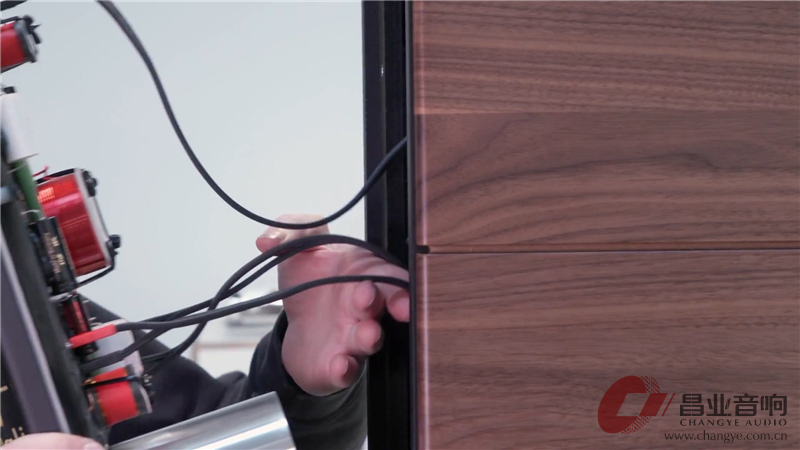

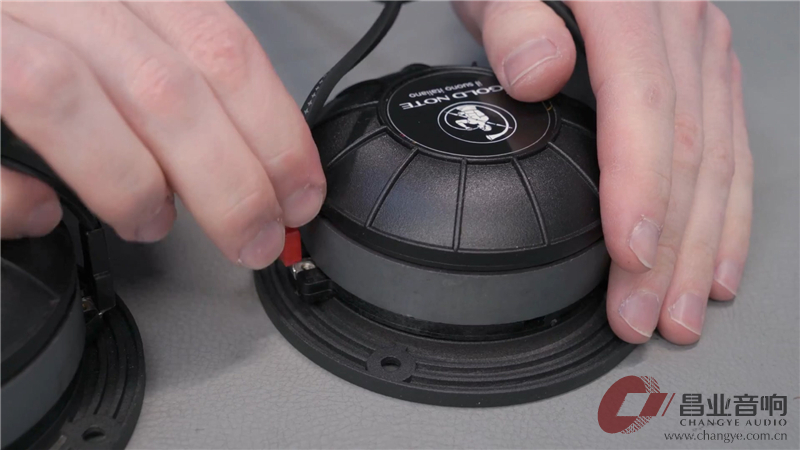

手工接线,线材也是GOLD NOTE自家生产,保证质量:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132008.573.jpg

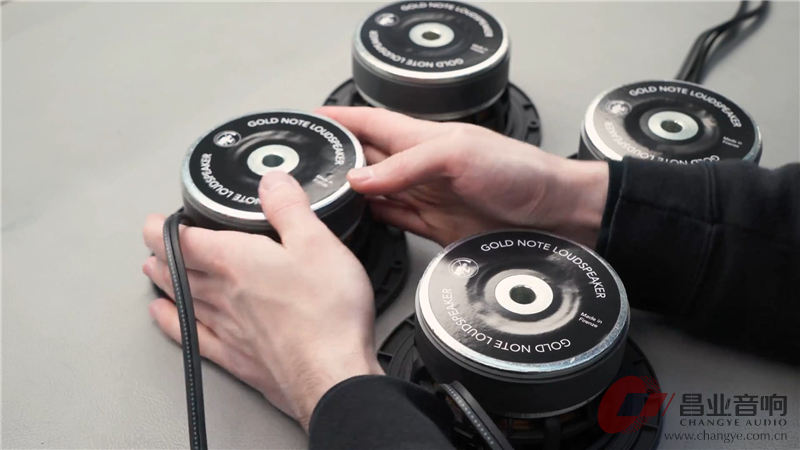

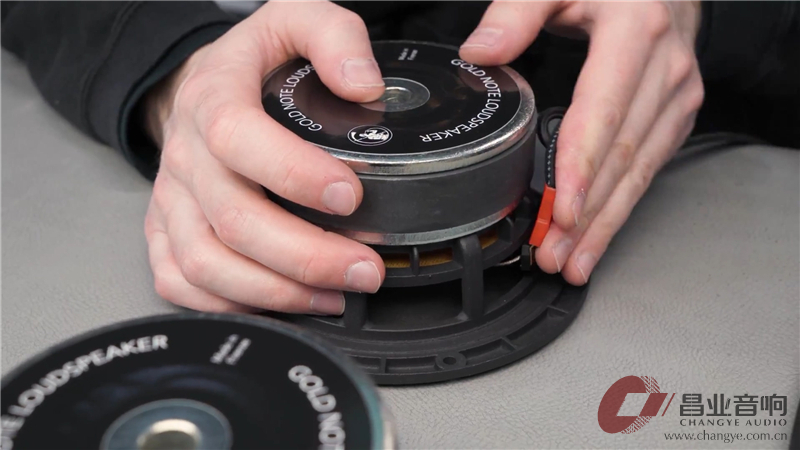

值得一提的是,全新的GOLD NOTE音箱单元是自主设计生产,专门供自家的音箱使用。

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132024.065.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132027.057.jpg

 楼主| 发表于 2022-3-30 16:03:22 | 显示全部楼层

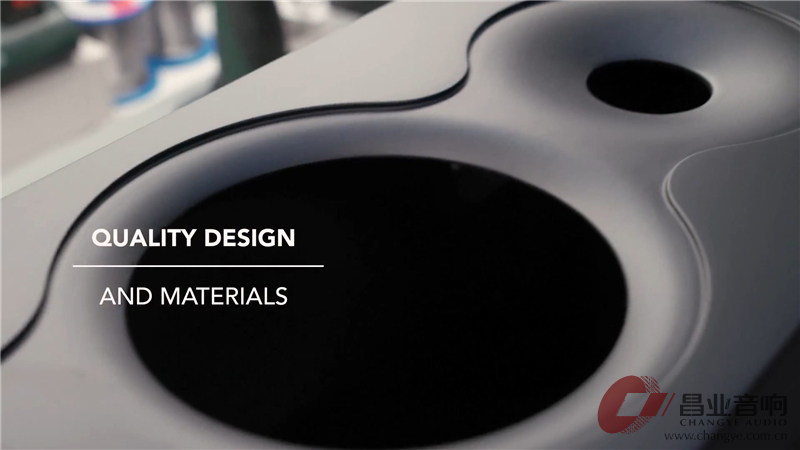

准备好单元后,开始箱体的制作,前面板是一体成型,经过多重打磨处理,质感非常漂亮:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220329_125325.478.jpg

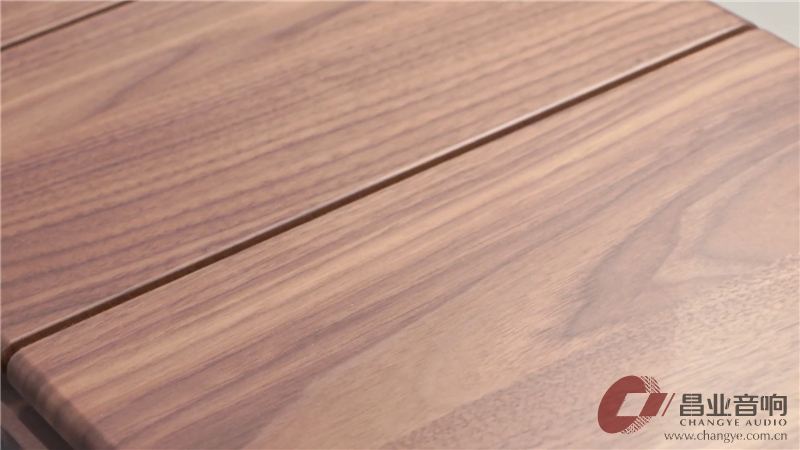

侧面板使用的是意大利本土胡桃木,经过打磨处理后保留着原木优雅质感:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132052.291.jpg


 楼主| 发表于 2022-3-30 16:05:17 | 显示全部楼层

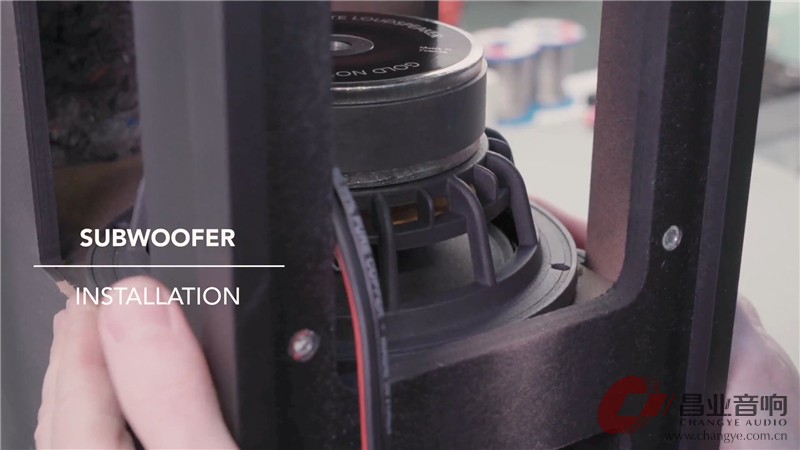

GOLD NOTE A6 EVO II落地箱有一个向下的低音单元,这样设计是为了确保宽松的低音效果。

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220329_125711.671.jpg

搭配高刚性的箱体支撑,为单元更好发挥打下基础:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132102.439.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132114.015.jpg
 楼主| 发表于 2022-3-30 16:06:31 | 显示全部楼层

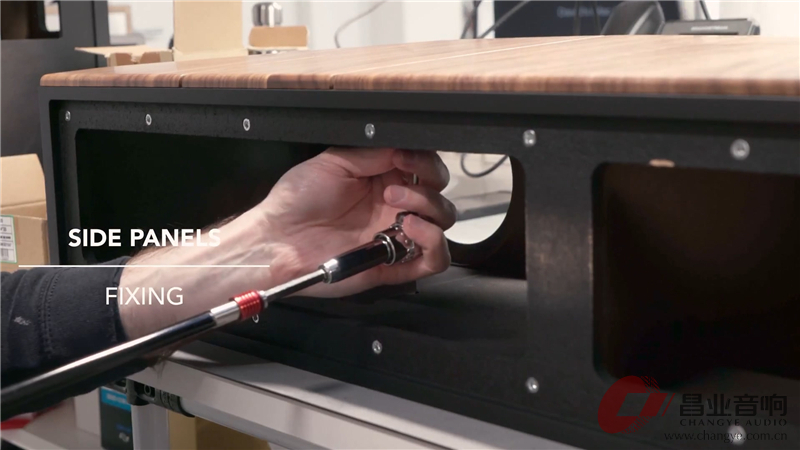

打上螺丝固定好,基本完成箱体的安装:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132141.274.jpg

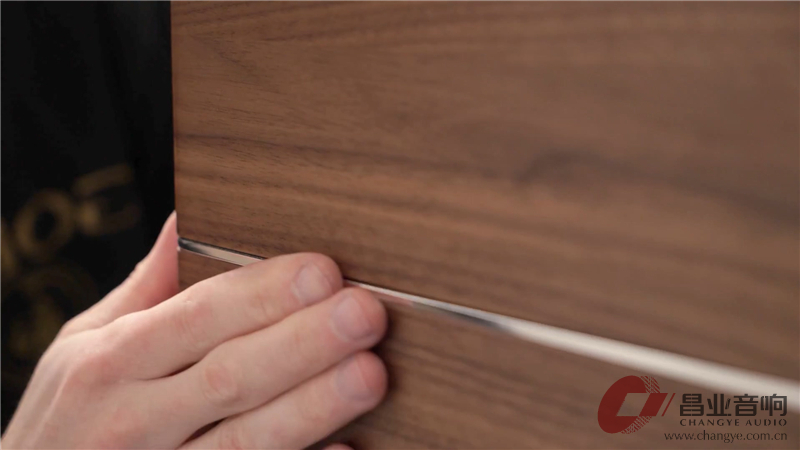

剩下一道工序是打磨音箱的金属装饰条,做好每一个细节是意大利制作的骄傲。

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132156.202.jpg

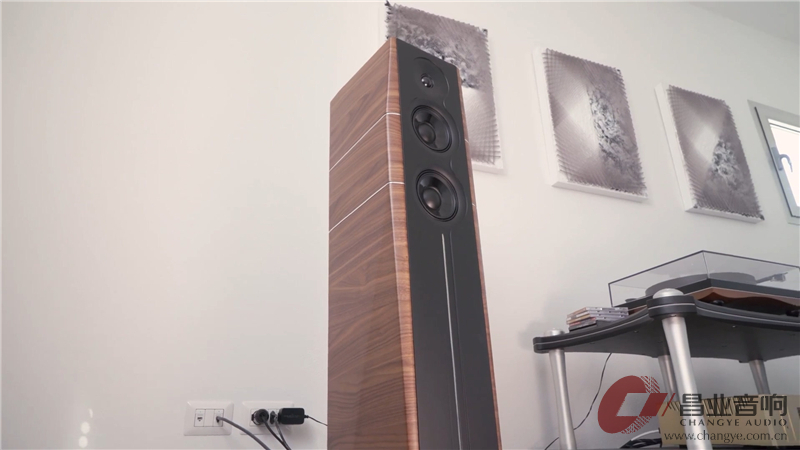

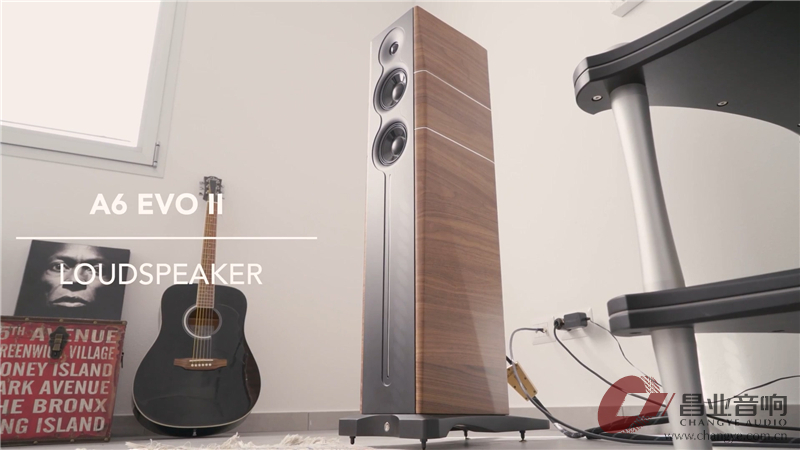

安装好金属装饰条后,一对意大利GOLD NOTE音箱就制作完成了:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132203.010.jpg



 楼主| 发表于 2022-3-30 16:08:12 | 显示全部楼层
欢迎亲临昌业音响陈列室试听体验意大利金乐GOLD NOTE手工音箱!

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132211.301.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132212.380.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132213.978.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132219.278.jpg



 楼主| 发表于 2022-3-30 16:08:44 | 显示全部楼层

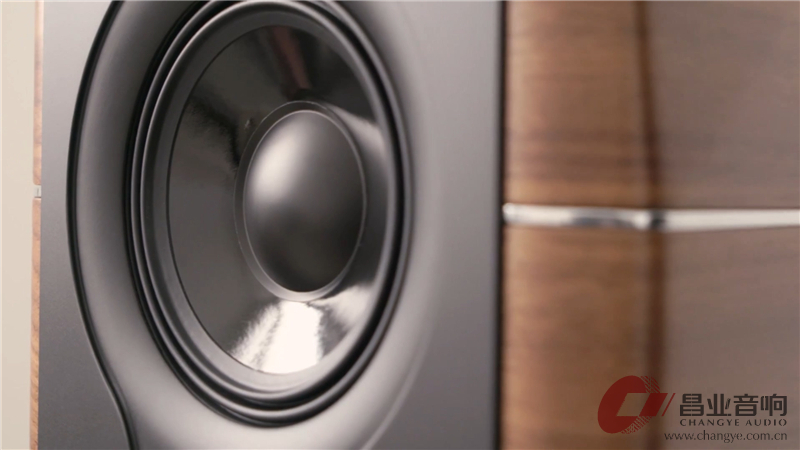

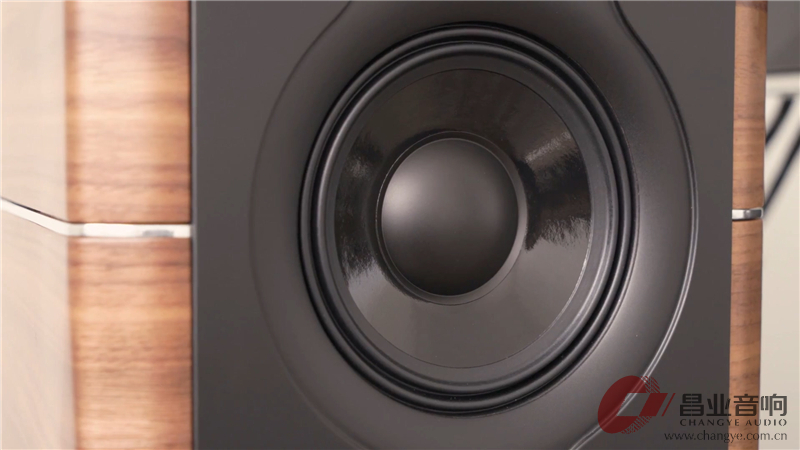

细节鉴赏:

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132221.561.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220330_161014.114.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220330_161017.917.jpg

HOW IT'S MADE _ A6 EVO II loudspeaker-(1080p).mp4_20220328_132223.946.jpg
